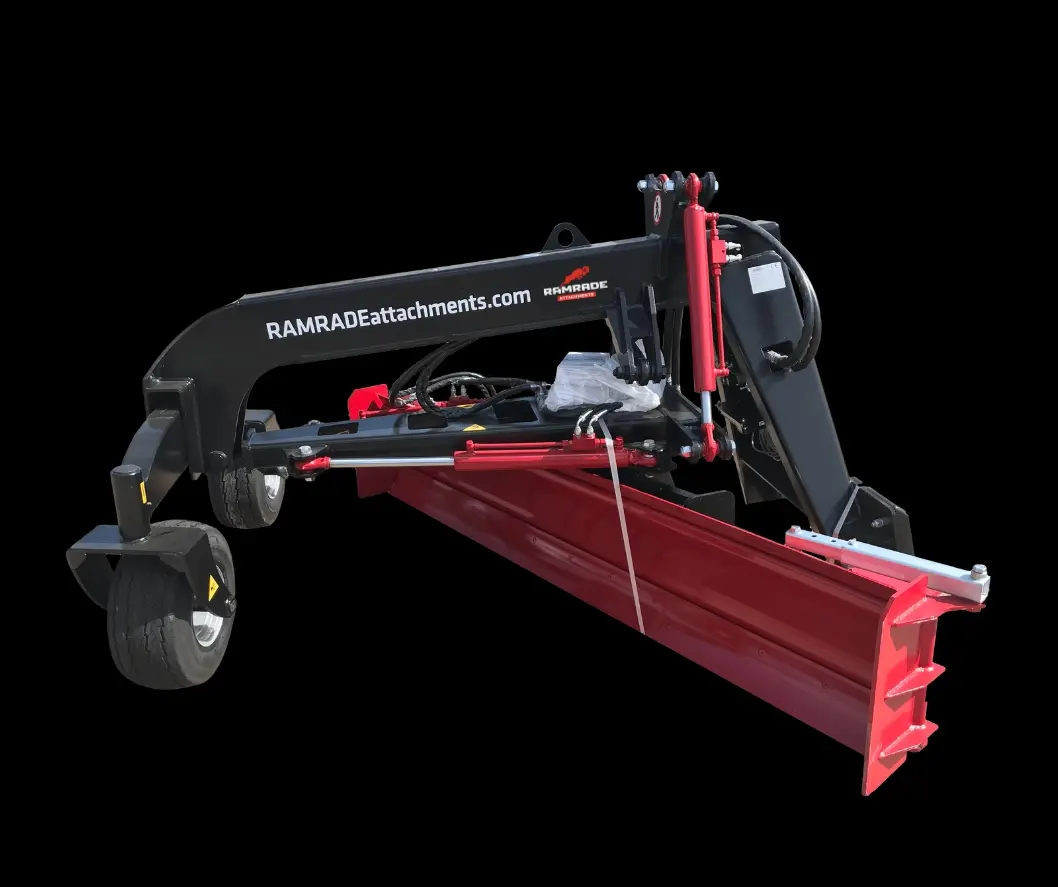

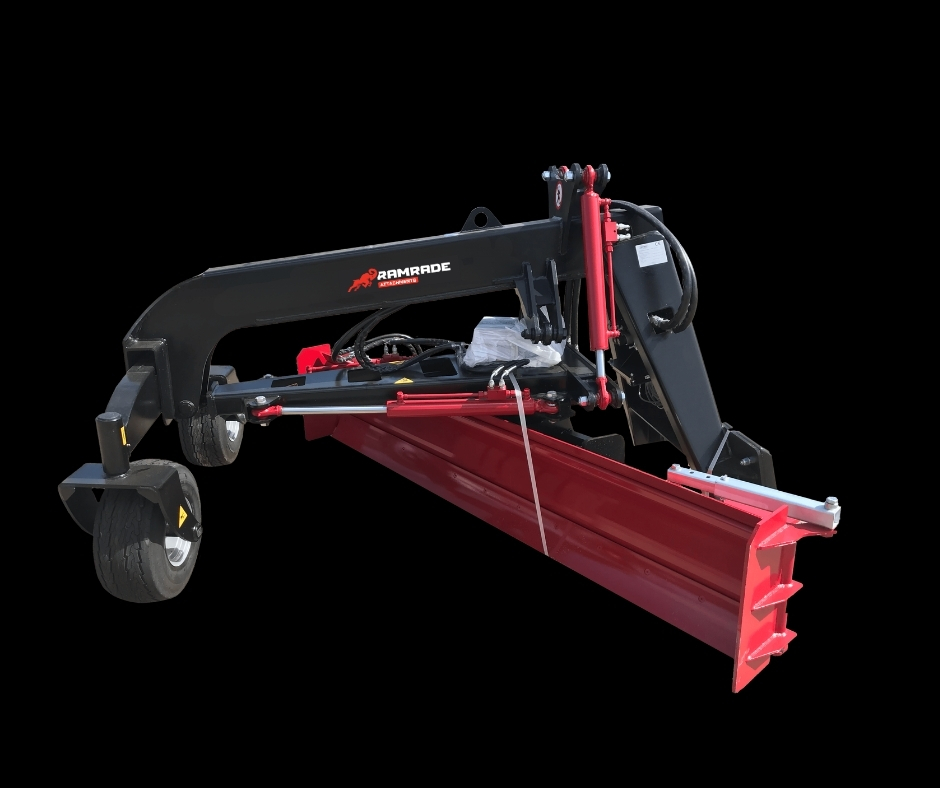

RAMRADE Grader Blade

Made in Italy, the RAMRADE Cobra Grader Blade is the perfect attachment for levelling and grading sites where traditional graders are unable to access. The levelling blade is equipped with a double-level bolted cutting edge in wear resistant steel,so it is reversible and easy to replace. The levelling blade can be hydraulically displaced to the right or left side horizontally by more than 40 cm from the centre position. The levelling blade can rotate 34° (angulation), tilt 35° to the right and left. Fitted with a proportional valve, the RAMRADE Cobra 2400 Grader Blade can easily have 2D or 3D GPS systems installed.

  • 2,400 mm width blade
  • Proportional control valve
  • Levelling blade, hydraulic horizontal, left-to-right side shift
  • 730kg overall weight
  • 80L/min hydraulic flow rate
  • Universal skid steer pick-up

Free no-obligation quote

"*" indicates required fields

About this attachment

Control System
The control system is optimised to operate using joystick controls, pushbuttons, 3 lever manipulators, and a radio remote control. First, the joystick provides precise movement with proportionate pressure for fine grading. Second, connecting an electrohydraulic control value to the host cockpit allows for a mixture of button and manipulator controls. Whereas the 3-lever manipulator differentiates from the last option since it has no pushbuttons. Finally, the radio command control system is an option provided when wires are likely to get damaged from installation through the door.

For more information on RAMRADE products, visit the RAMRADE Attachments website. Otherwise browse the available Skid Steer Attachments.

Specs

Additional information

Brands

RAMRADE Attachments

Dimensions & Weight

Overall Length: 2,280 mm
Overall Width: 2,898 mm
Overall Height: 1,389 mm
Blade Width: 2,400 mm
Weight: 740 kg
Flow Rate: 80L/min

Range

Max Blade Angle: +/- 34°
Max Blade Shift (left-to-right): +/- 405 mm
Max Blade Oscillation: +/- 35°
