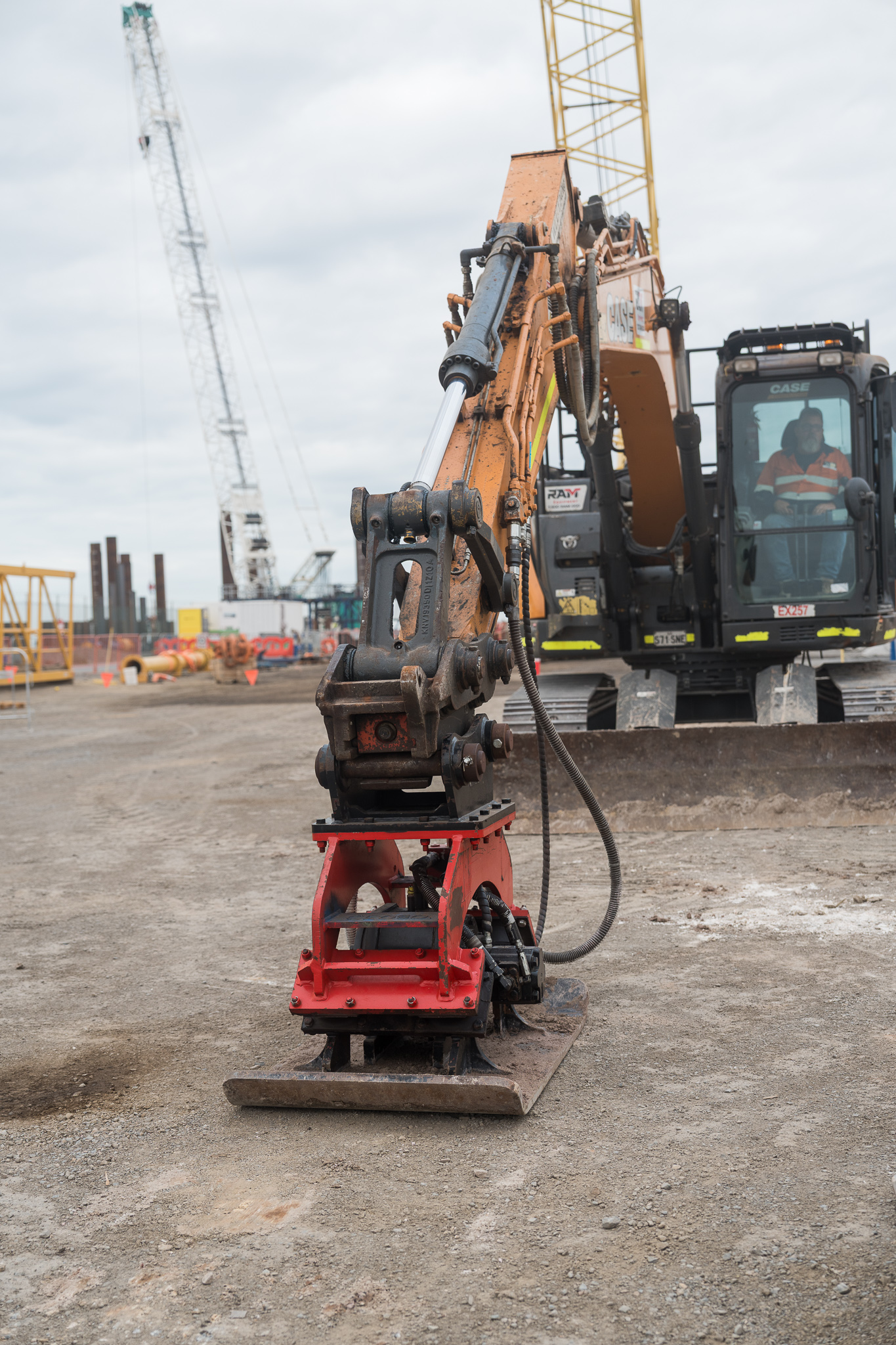

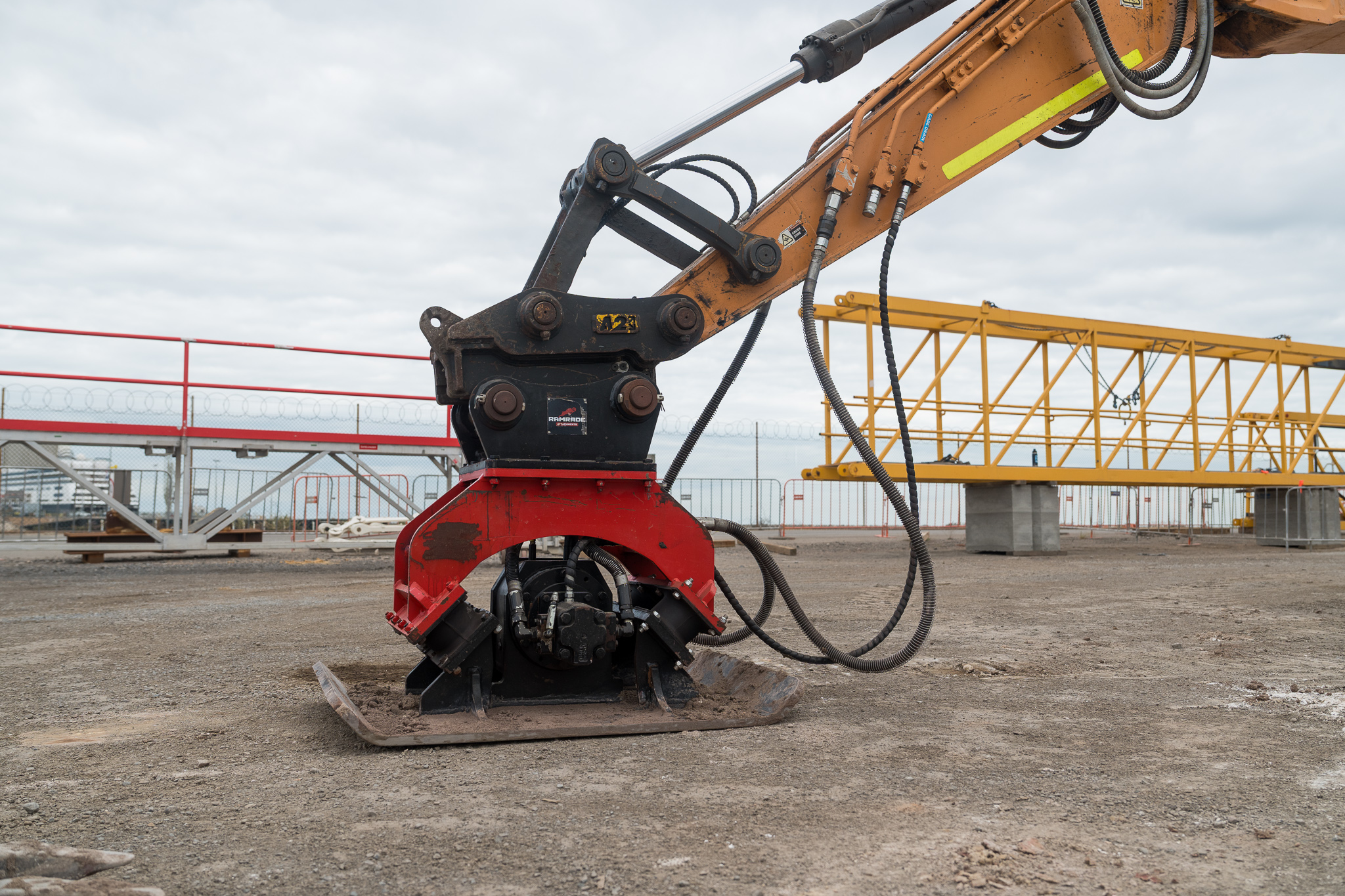

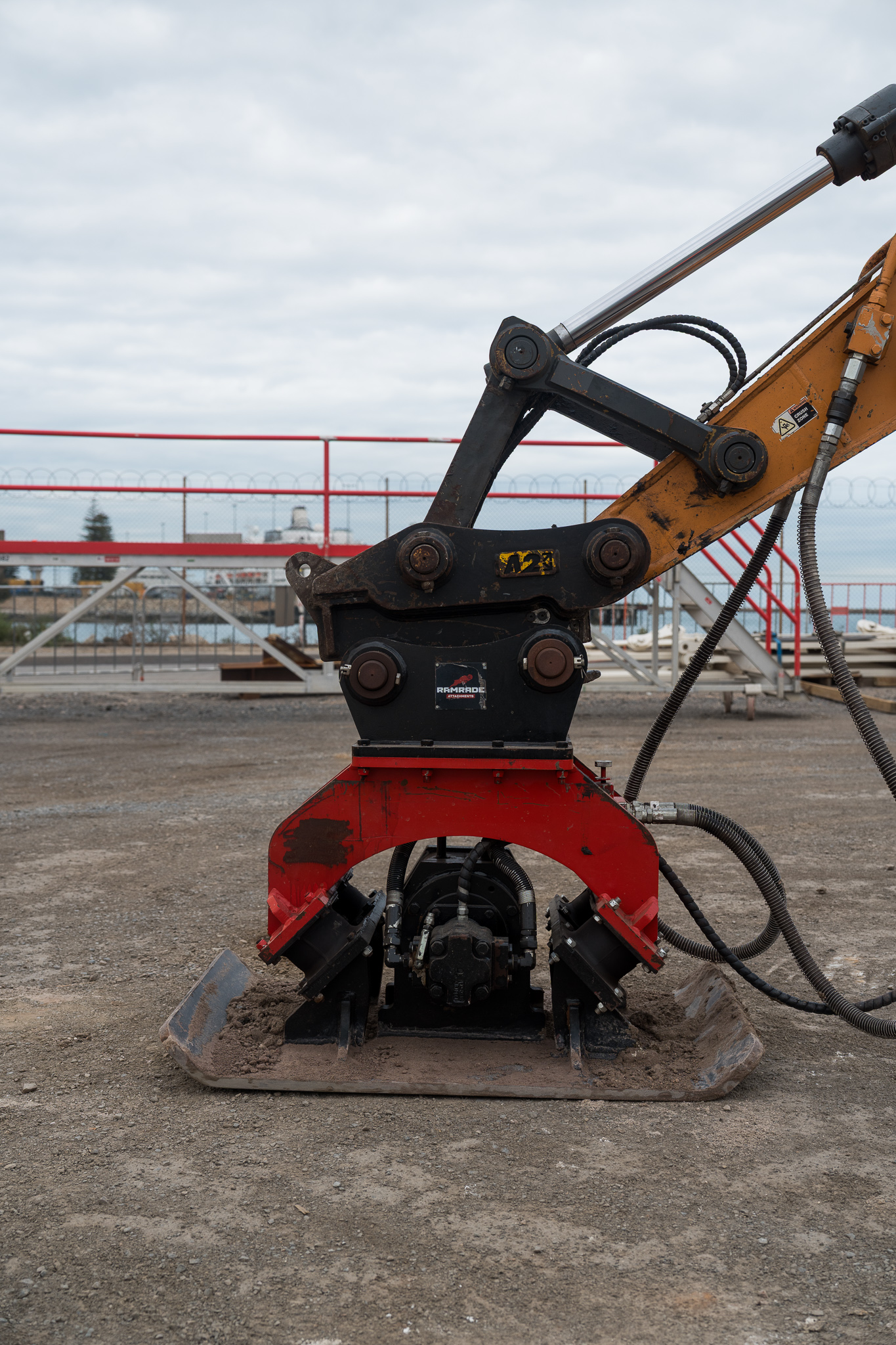

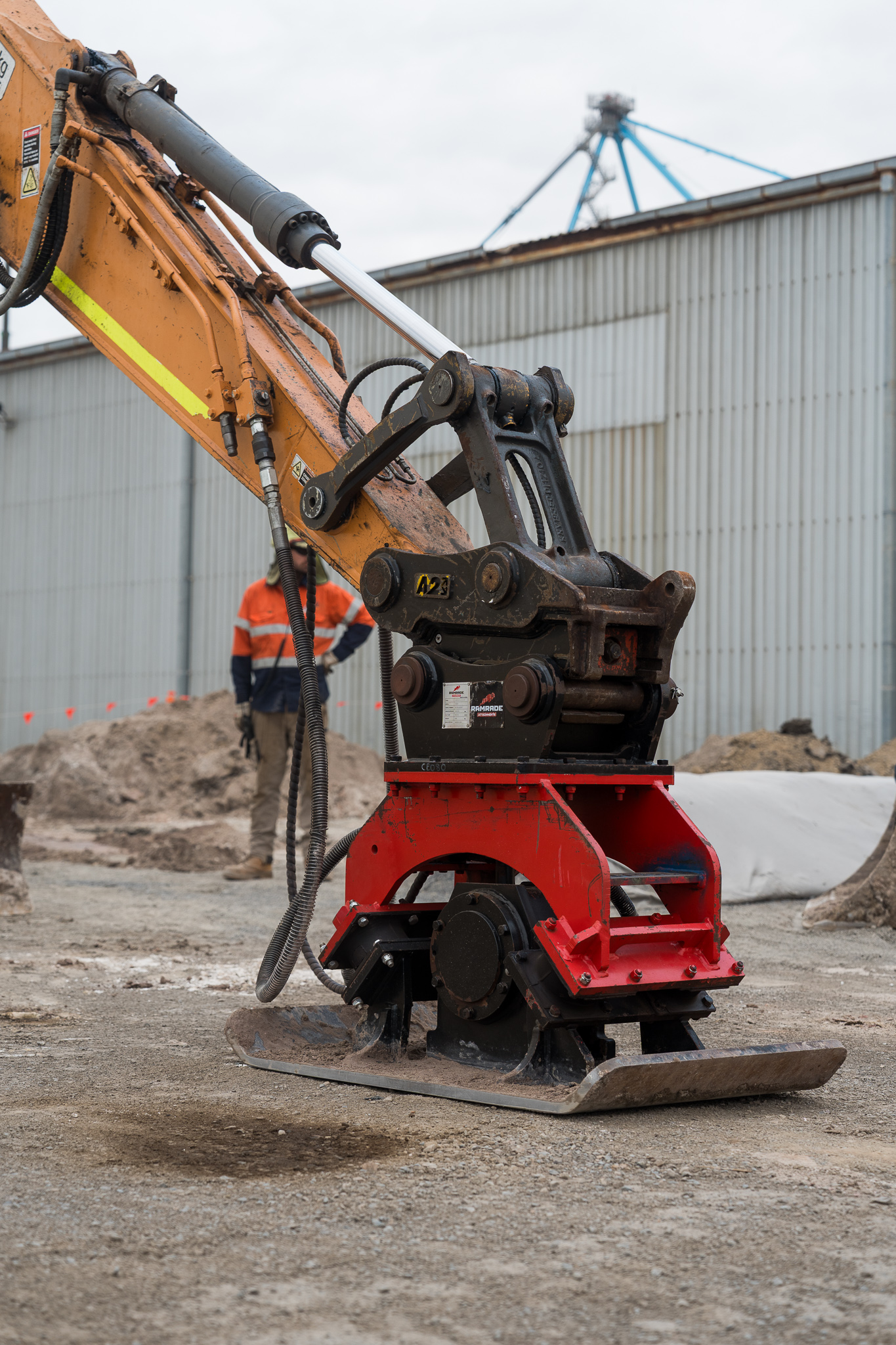

RAMRADE Vibe Plate

The RAMRADE Vibe Plate enables maximum productivity while compacting material in deep trenches and embankments. Easy and versatile mounting ensures minimal downtime for your excavator. Easy to maintain design and offers excellent compaction force and longevity. Operators can work safely from the comfort of their excavator.

  • Size range suits up to 35 tonne excavators
  • Large compaction force
  • Fully shock absorbed
  • Noise reduction technology
  • Easily powered by your existing hydraulic hammer piping
Facebook

About

RAMRADE Vibe Plate

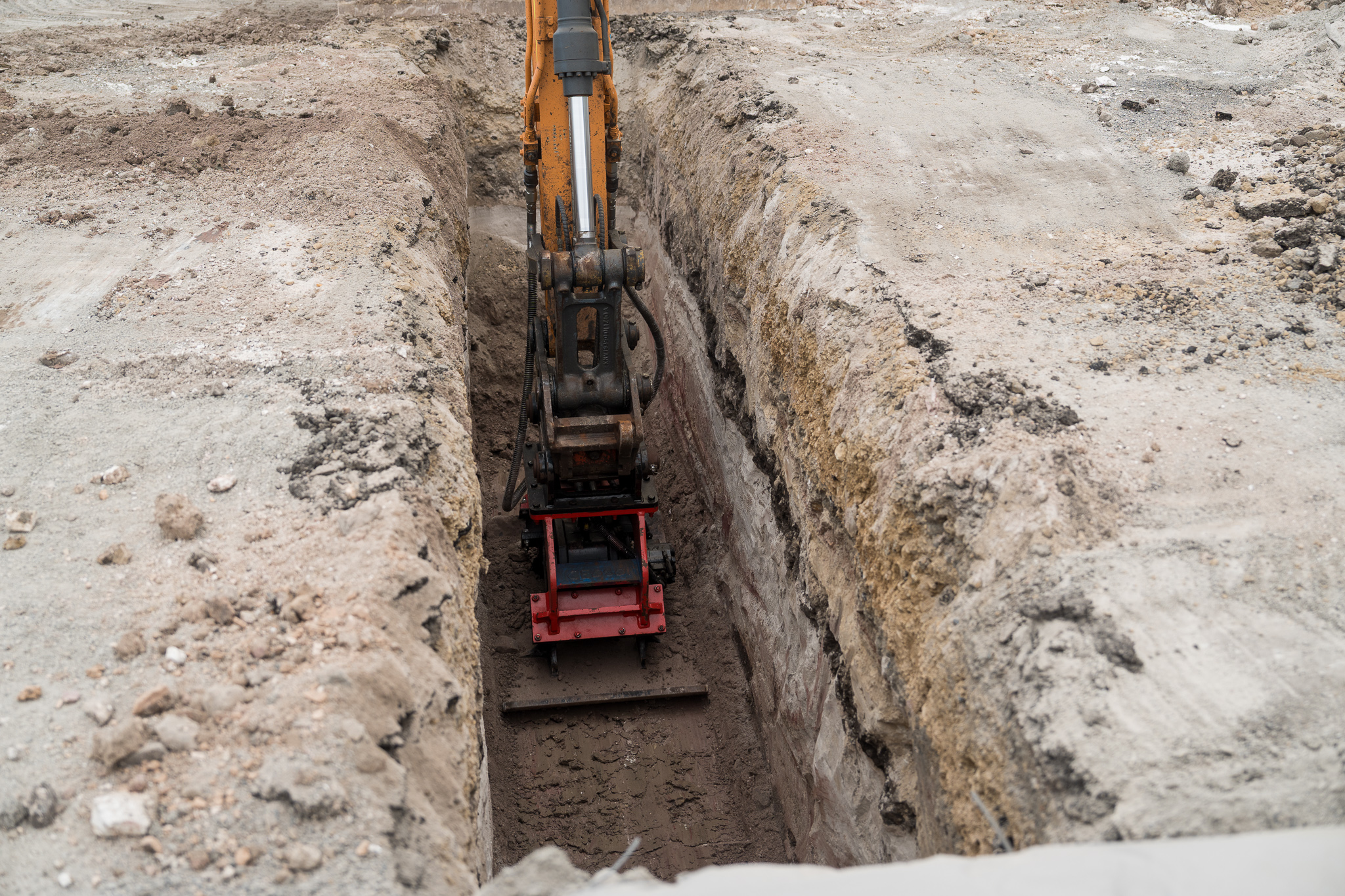

Ideal for compacting soil in deep excavation and trenches. Also known as a compactor plate, the RAMRADE Vibe Plate offers massive compaction force and great reliability. Most importantly, it offers increased safety as there is no longer any need to be directly in the workspace. Simple to operate, it can be fitted to quick-couplers and standard adapter plates. The hire of our Vibe Plate includes the standard attachment pins and hoses.

Fully shock absorbed, it suits excavators from 4 – 37 tonne. It also suits a wide range of popular excavator brands: Hitachi, Kobelco and Kubota.

About RAMRADE Attachments

RAMRADE Attachments is a world-class supplier of high-quality attachments to suit your excavator, skid steer, and other earthmoving equipment. They are manufactured to exceed rigorous global standards, and utilizing the most advanced technology. What’s more, these attachments are extensively field and factory tested to produce an outstanding range that consistently delivers. Browse the RAMRADE range

All attachments come with the necessary pins, bolts, tools, washers, gauges, and hoses for D.I.Y setup and maintenance. Owners can be confident in their ability to complete their jobs on time backed by efficient attachments!

For machinery equipment to accompany your attachments, visit the RAM Equipment website for your hire needs now!

Specs

Additional information

Brands

RAMRADE Attachments

VC30-5

Pick-up Dimensions: 245-170-45 mm Weight: 350 kg Plate Dimensions(LxWxT): 950x550x25 mm Required Oil Flow: 45-65 Lpm Pressure: 150-210 kg/cm2

VC30-8

Pick-up Dimensions: 300-200-50 mm Weight: 350 kg Plate Dimensions(LxWxT): 950x550x25 mm Required Oil Flow: 45-65 Lpm Pressure: 150-210 kg/cm2 Pick up dimensions: 50-200-300 mm

VC60

Pick-up Dimensions: 375-270-65 mm Weight: 644 kg Plate Dimensions(LxWxT): 1,160x770x28 mm Required Oil Flow: 80-110 Lpm Pressure: 150-210 kg/cm2

VC80

Pick-up Dimensions: 460-340-80 mm Weight: 1060 kg Plate Dimensions(LxWxT): 1,350x900x32 mm Required Oil Flow: 170-220 Lpm Pressure: 150-210 kg/cm2

VC90

Pick-up Dimensions: 515-400-90 mm Weight: 1,150 kg Plate Dimensions(LxWxT): 1,350x900x32 mm Required Oil Flow: 170-220 Lpm Pressure: 180-210 kg/cm2

VC100

Pick-up Dimensions: 585-420-100 Weight: 1,150 kg Plate Dimensions(LxWxT): 1,350x900x32 mm Required Oil Flow: 170-220 Lpm Pressure: 180-210 kg/cm2
